Aluminium draaistroommotor 4/6V-3f 15kW 2915rpm IEC132M B3/B14a
| Product code | DAA10BA15CT7 |
|---|---|
| Manufacturer code | AMPE-132M-TA-2 |
| Manufacturer | AEG-Lafert |
| Material housing | Aluminum |
| Number of poles | 2 |
| Rated power | 15 kW |
| IE efficiency class | 3 |
| Mounting position | B3/B14a |
| IEC code | 132M |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | AEG-Lafert |
|---|---|
| material housing | Aluminum |
| number of poles | 2 |
| rated power | 15 kW |
| rated speed motor | 2915 min-1 |
| iEC code | 132M |
| mounting position | B3/B14a |
| terminal box position | Top |
| iE efficiency class | 3 |
| sales date until | -- |
| power supply motor | 400/690V-3phase-50Hz |
| iP protection class | 55 |
| insolation class | F-class B |
| rated torque motor | 49.2 Nm |
| starting torque / Rated torque Ms/Mn | 2.6 |
| breakaway torque / Rated torque Ma/Mn | 3.7 |
| kipp torque / Rated torque Mk/Mn | 3.8 |
| rated current at 400V | 26.8 A |
| breakaway current / Rated current Ia/In | 9.6 |
| cosinus Phi at 100% belasting en 50Hz | 0.88 j |
| moment of inertia J | 0.028 kgm² |
| efficiency at 100% load | 91.9 % |
| efficiency at 75% load | 92.2 % |
| efficiency at 50% load | 91.0 % |
| sound pressure LpA | 72 dB(A) |
| sound power LWA | 81 dB(A) |
| permissible number of starts per hour | 15 |
| permissible axial force horizontal Fa | 0.78 kN |
| permissible axial force vertical up Fa | 0.99 kN |
| permissible axial force vertical down Fa | 0.58 kN |
| size gland | M32 |
| size second gland | M32 |
| weight | 68.0 kg |
| color | Black |
| bearing DE (Drive End) | 6208-2Z |
| bearing NDE (Non Drive End) | 6208-2Z |

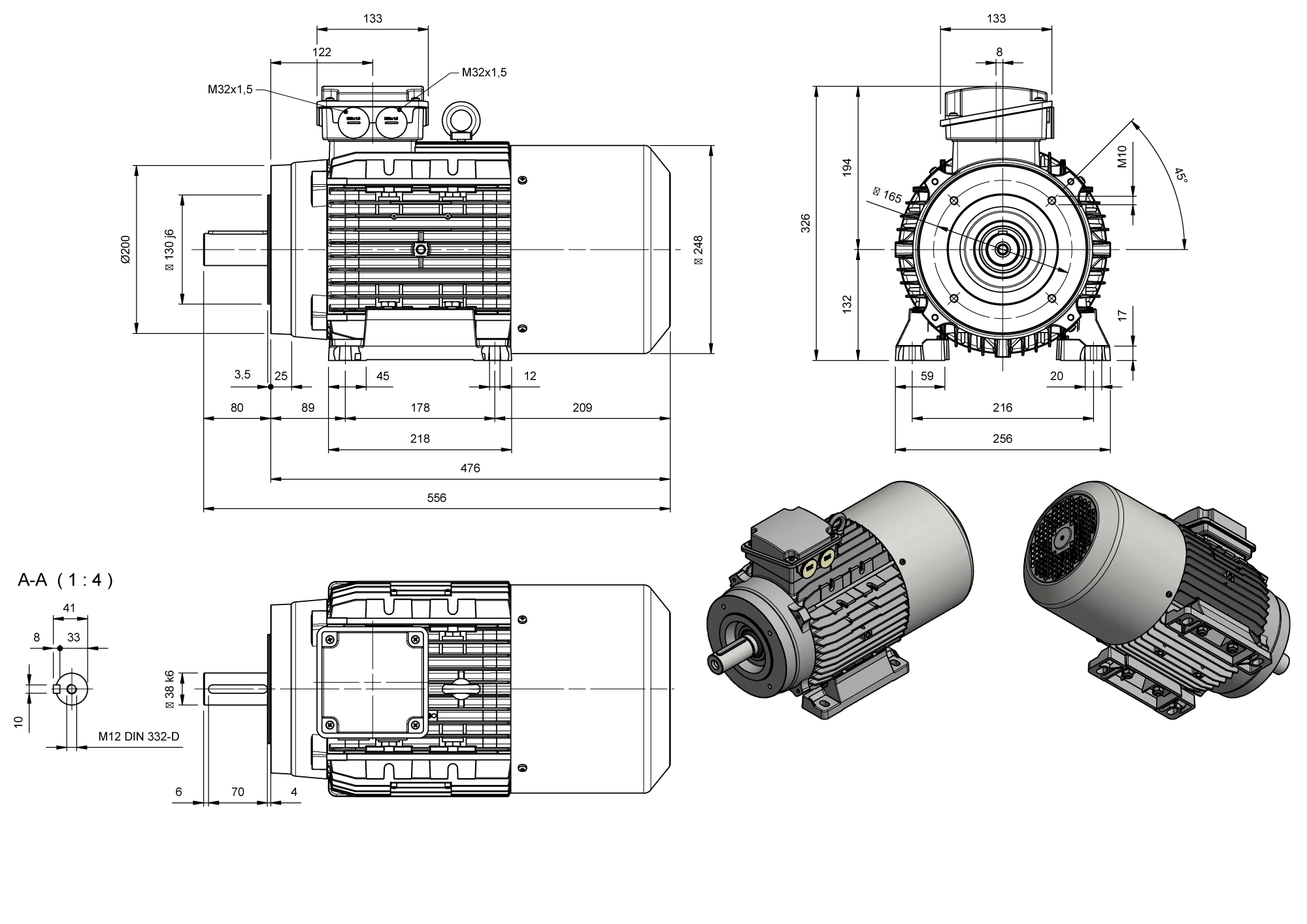

Drawing
The IEC standardized aluminum three-phase motors from AEG-Lafert of the AM-series comply with international standardizations, including EMC and LV regulations, and are available in a power range from 0.75 to 15kW in foot and flange versions B5 or B14. All motors may be controlled by a frequency inverter and comply to efficiency class IE3 Premium efficiency.
IE efficiency class
- IE3 - Premium Efficiency
Rated power (4-pole)
- 0.75-15kW
IEC sizes
- 80-160L
Number of poles
- Single speed: 2,4,6
Versions
- Foot IM B3
- Flange IM B5 or IM B14
- Combination of foot B3 and flange B5 or B14
Frequency
- 50 Hz and 60 Hz
Regulations
- CEE 73/23 (LVD) and CEE89/336 (EMC)
Frequency inverter proof
- All sizes
Housing
- Aluminum IP55
Motor options
- Temperature sensors (PTC or clixon)
- Separate forced cooling
- Built-in encoder
- Divergent voltages
- Higher protection class
- Special motor flanges
- CSA and UL proof
