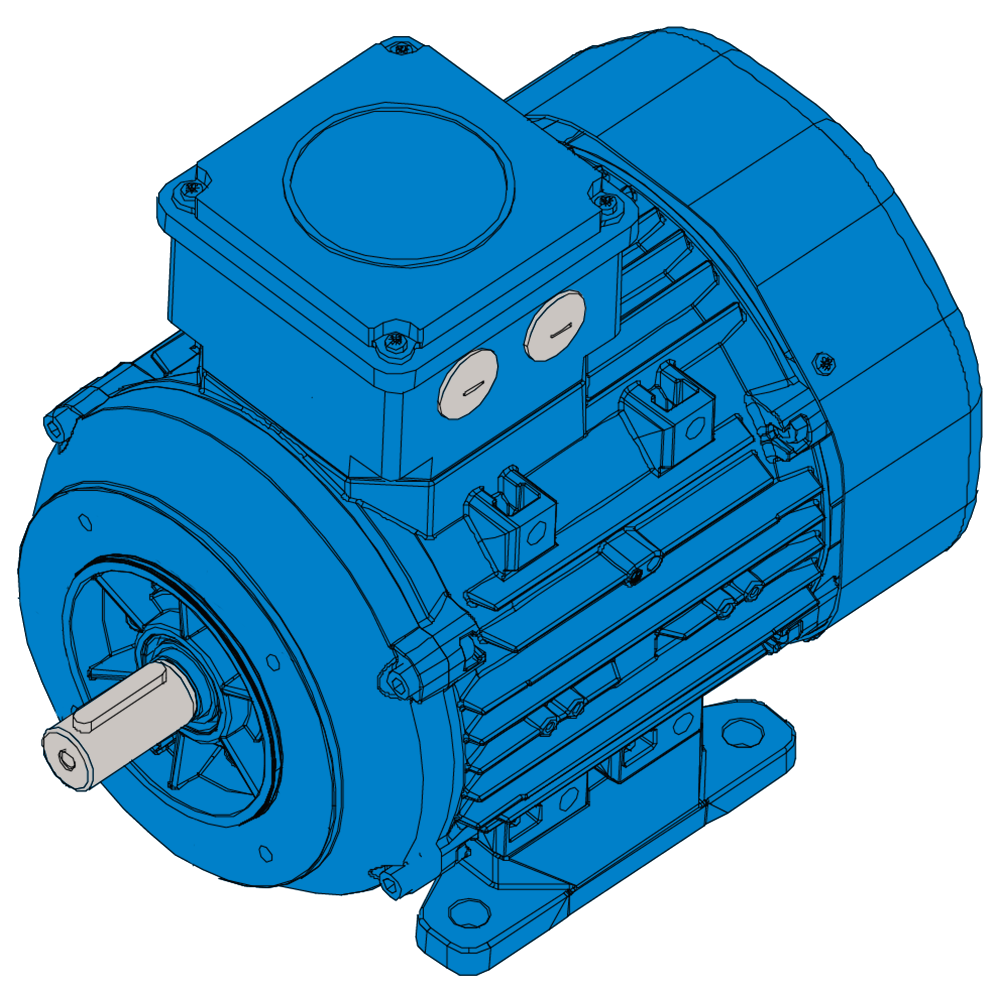

Aluminium draaistroommotor 2/4V-3f 0,75kW 2890rpm IEC80 B3TB14a
| Product code | DEE04AA75CT7 |
|---|---|
| Manufacturer code | E3H PC 80M 2C 40 |
| Manufacturer | ELSTO |
| Material housing | Aluminum |
| Number of poles | 2 |
| Rated power | 0.75 kW |
| IE efficiency class | 3 |
| Mounting position | B3/B14a |
| IEC code | 80 |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | ELSTO |
|---|---|
| series | E3H |
| type | Standard |
| material housing | Aluminum |
| number of poles | 2 |
| rated power | 0.75 kW |
| rated power at 60Hz | 0.86 kW |
| rated speed motor at 50Hz | 2890 min-1 |
| rated speed motor at 60Hz | 3490 min-1 |
| iEC code | 80 |
| mounting position | B3/B14a |
| terminal box position | Top |
| iE efficiency class | 3 |
| sales date until | -- |
| frequency inverter mandatory | No |
| power supply motor | 230/400V - 3 phase |
| supply voltage motor at 60Hz | 265/460V - 3 phase |
| iP protection class | 55 |
| insolation class | F trc B |
| balance class | A |
| rated torque motor at 50Hz | 2.5 Nm |
| rated torque motor at 60Hz | 2.35 Nm |
| breakaway / Rated torque Ma/Mn at 50Hz | 3.7 |
| breakaway / Rated torque Ma/Mn at 60Hz | 3.5 |
| kipp torque / Rated torque Mk/Mn at 50Hz | 4.2 |
| kipp torque / Rated torque Mk/Mn at 60Hz | 4.1 |
| rated current at 400V | 1.7 A |
| rated current at 400V at 60Hz | 1.53 A |
| breakaway / Rated current Ia/In at 50Hz | 8.3 |
| breakaway / Rated current Ia/In at 60Hz | 8 |
| cosinus Phi at 100% belasting en 50Hz | 0.81 j |
| cosinus Phi at 100% belasting en 60Hz | 0.83 j |
| moment of inertia J | 0.0014013 kgm² |
| efficiency at 100% load | 80.7 % |
| efficiency at 75% load | 79.8 % |
| efficiency at 50% load | 76.1 % |
| sound pressure LpA at 50Hz | 57 dB(A) |
| max axial force output shaft horizontal push Fa | 0.15 kN |
| max axial force output shaft horizontal pull Fa | 0.43 kN |
| max axial force output shaft vert. top up Fa | 0.46 kN |
| max axial force output shaft vert. top down Fa | 0.12 kN |
| max axial force output shaft vert. bottom up Fa | 0.18 kN |
| max axial force output shaft vert. bottom down Fa | 0.4 kN |
| permissible radial force Fr | 0.45 kN |
| material endschild | Aluminum |
| material flange B14 | Aluminum |
| material cooling fan | Plastic |
| material fan cover | Steel |
| size gland | M20 |
| number of cable glands | 1 |
| section power supply cable core | 10-14 mm² |
| bolt size terminal connection | M4 |
| weight | 12.3 kg |
| color | Ral 5010 |
| bearing DE (Drive End) | 6204-ZZ |
| bearing NDE (Non Drive End) | 6204-ZZ |
Drawing
The IEC standardized aluminum three-phase motors from the E3H series of manufacturer ELSTO, comply with international regulations including EMC and LV directives, and are deliverable in a power range of 0.12 to 45kW in footh B3 and/or flange mounting B5 or B14. All motors can be controlled by a frequency inverter. The efficiency class of the motors are IE3.
IE efficiency class
- IE3 - Premium Efficiency
Rated power (4-pole)
- 0.12-45kW
IEC frame sizes
- 63-225M
Number of poles
- Single speed; 2,4,6
Mounting versions
- Footh IM B3
- Flange IM B5 or IM B14
- Combined footh B3 and flange B5 or B14
Frequency
- 50 Hz and 60 Hz
Directives
- CEE 73/23 (LVD) and CEE89/336 (EMC)
Suitable for frequency inverter
- All motor powers
Material housing
- Aluminum IP55
Motor options
- Temperature sensors (PTC or clixon)
- External cooling fan
- Speed sensor
- Non standard voltages
- Improved protection
