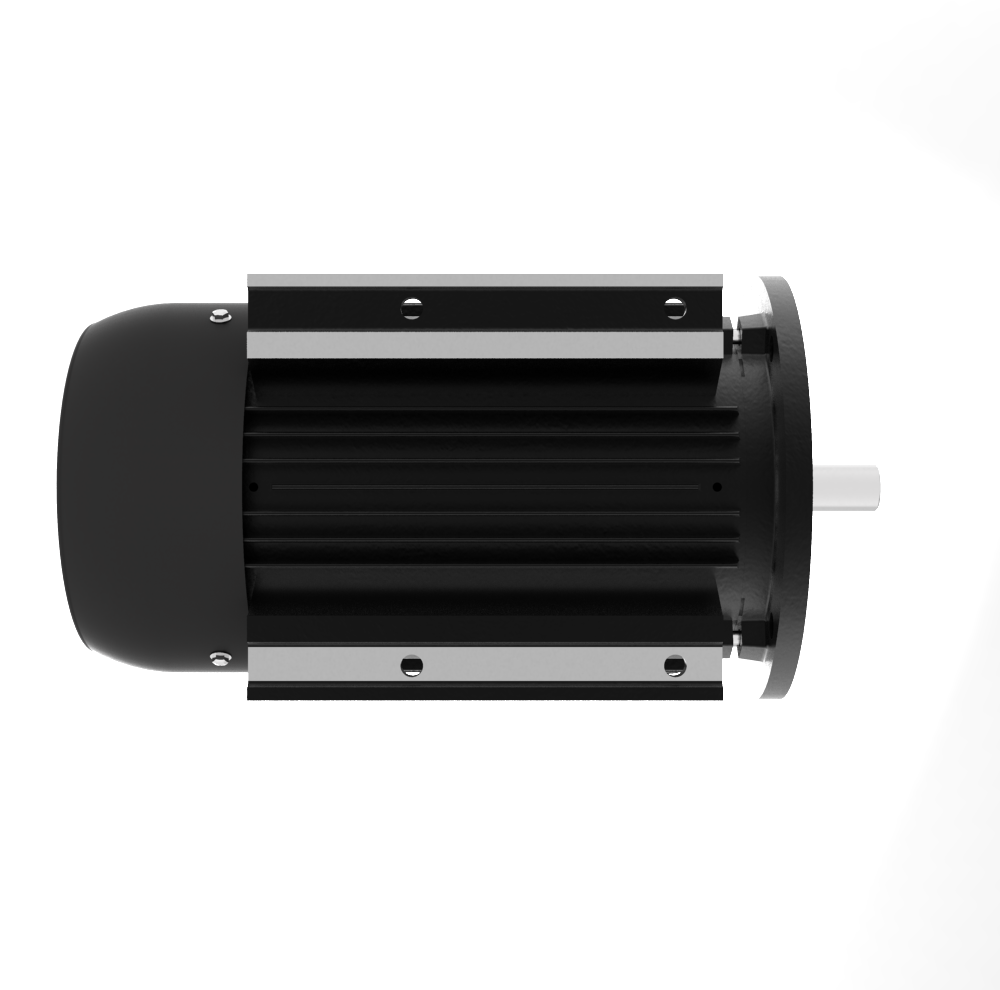

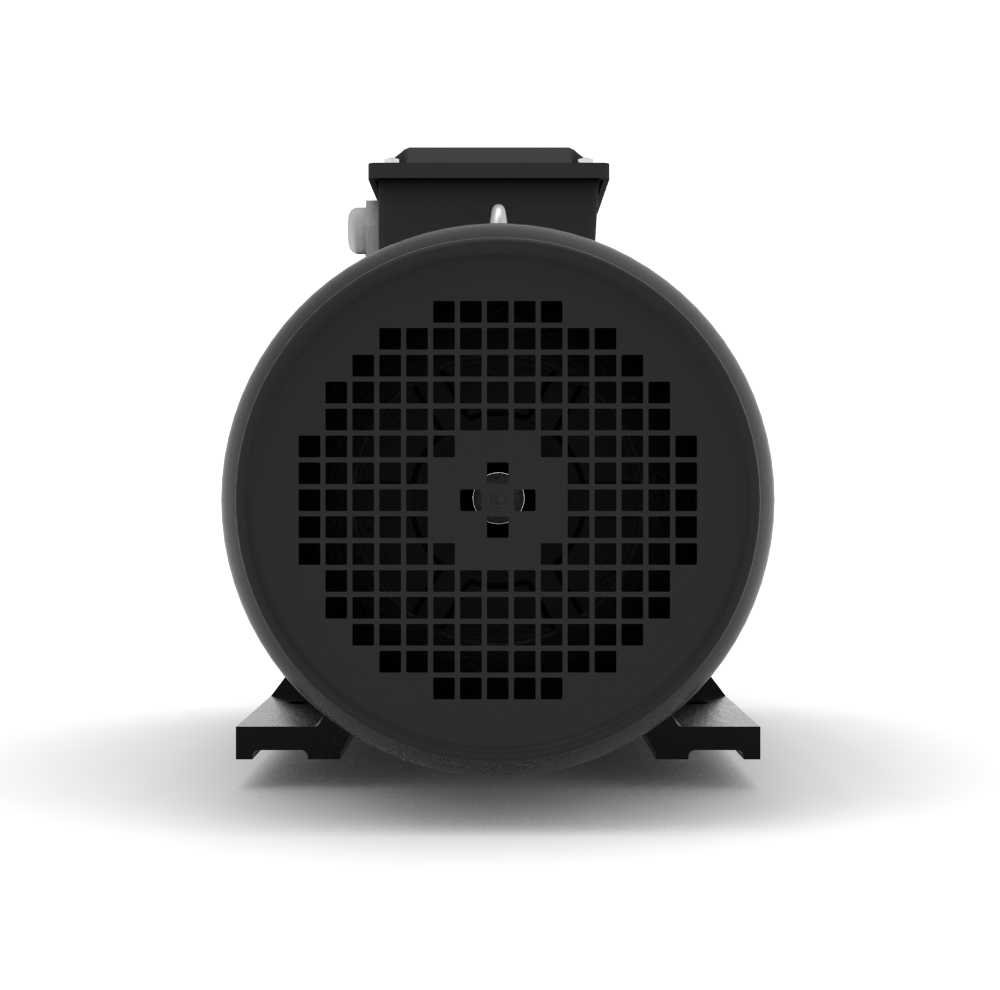

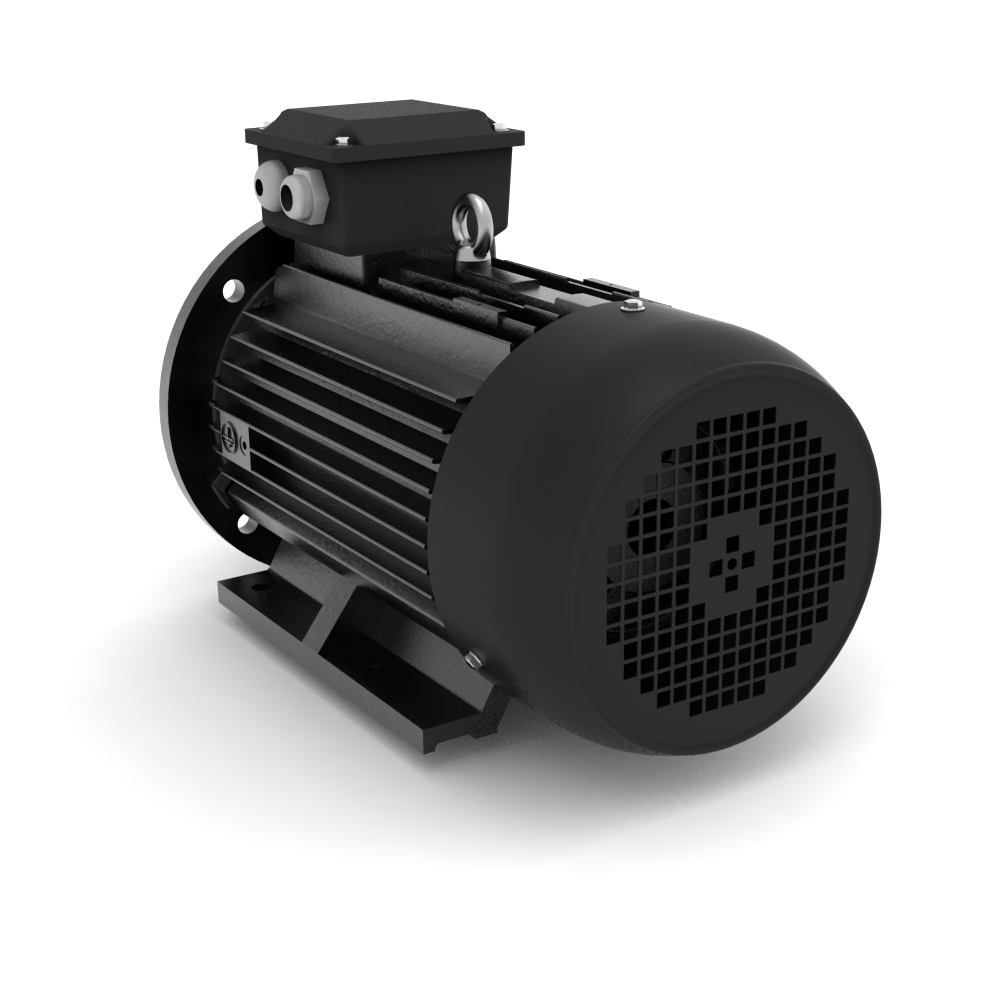

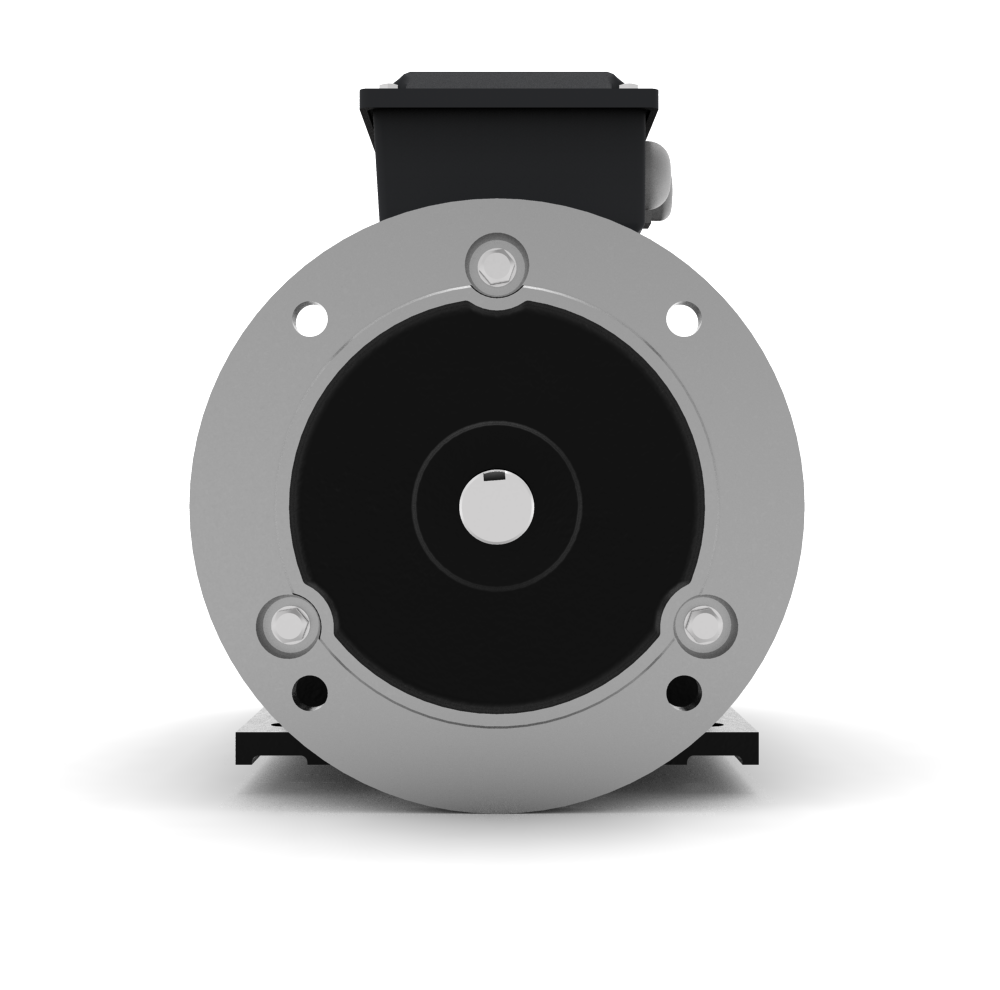

Gietijzeren draaistroommotor 4/6V-3f 3kW 960rpm IEC132S B3/B5
| Product code | DHG09BC30CT8 |
|---|---|
| Manufacturer code | H3G-132S-6 |
| Manufacturer | ELSTO |
| Material housing | Cast-iron |
| Number of poles | 6 |
| Rated power | 3 kW |
| IE efficiency class | 3 |
| Mounting position | B3/B5 |
| IEC code | 132S |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | ELSTO |
|---|---|
| material housing | Cast-iron |
| number of poles | 6 |
| rated power | 3 kW |
| rated speed motor | 960 min-1 |
| iEC code | 132S |
| mounting position | B3/B5 |
| terminal box position | Top |
| iE efficiency class | 3 |
| sales date until | -- |
| power supply motor | 400/690V-3phase-50Hz |
| iP protection class | 55 |
| insolation class | F |
| rated torque motor | 29.8 Nm |
| starting torque / Rated torque Ms/Mn | 2.0 |
| kipp torque / Rated torque Mk/Mn | 2.1 |
| rated current at 400V | 6.8 A |
| starting current / Rated current Is/In | 6.8 |
| cosinus Phi at 100% belasting en 50Hz | 0.74 j |
| moment of inertia J | 0.035 kgm² |
| efficiency at 100% load | 85.6 % |
| sound pressure LpA | 69 dB(A) |
| size gland | M30x2 |
| number of cable glands | 2 |
| weight | 75 kg |
| color | Black |
| bearing DE (Drive End) | 6308-2Z |
| bearing NDE (Non Drive End) | 6308-2Z |
| sealing DE (Drive End) | RB40x57x4.5 |
Drawing
The IEC standardized cast-iron three-phase motors of ELSTO of the H3G serie comply with international standardizations, including EMC and LV regulations, and are available in a power range from 0.75 to 355kW in foot and flange versions B5 or B14. All motors may be controlled by a frequency inverter and comply to efficiency class IE3 Premium efficiency.
IE efficiency class
- IE3 - Premium efficiency
Rated power (4-pole)
- 0.75-355kW
IEC sizes
- 80-355L
Number of poles
- Single speed: 2,4,6
Versions
- Foot IM B3
- Flange IM B5 or IM B14
- Combination of foot B3 and flange B5 or B14
Frequency
- 50 Hz and 60 Hz
Regulations
- CEE 73/23 (LVD) and CEE89/336 (EMC)
Frequency inverter proof
- All sizes
Housing
- Cast-iron IP55
Brake versions
- DC and AC power supply
- Various brake types
- Various DC rectifiers available
Motor options
- Temperature sensors (PTC or clixon)
- Separate forced cooling
- Built-in encoder
- Divergent voltages
- Higher protection class
