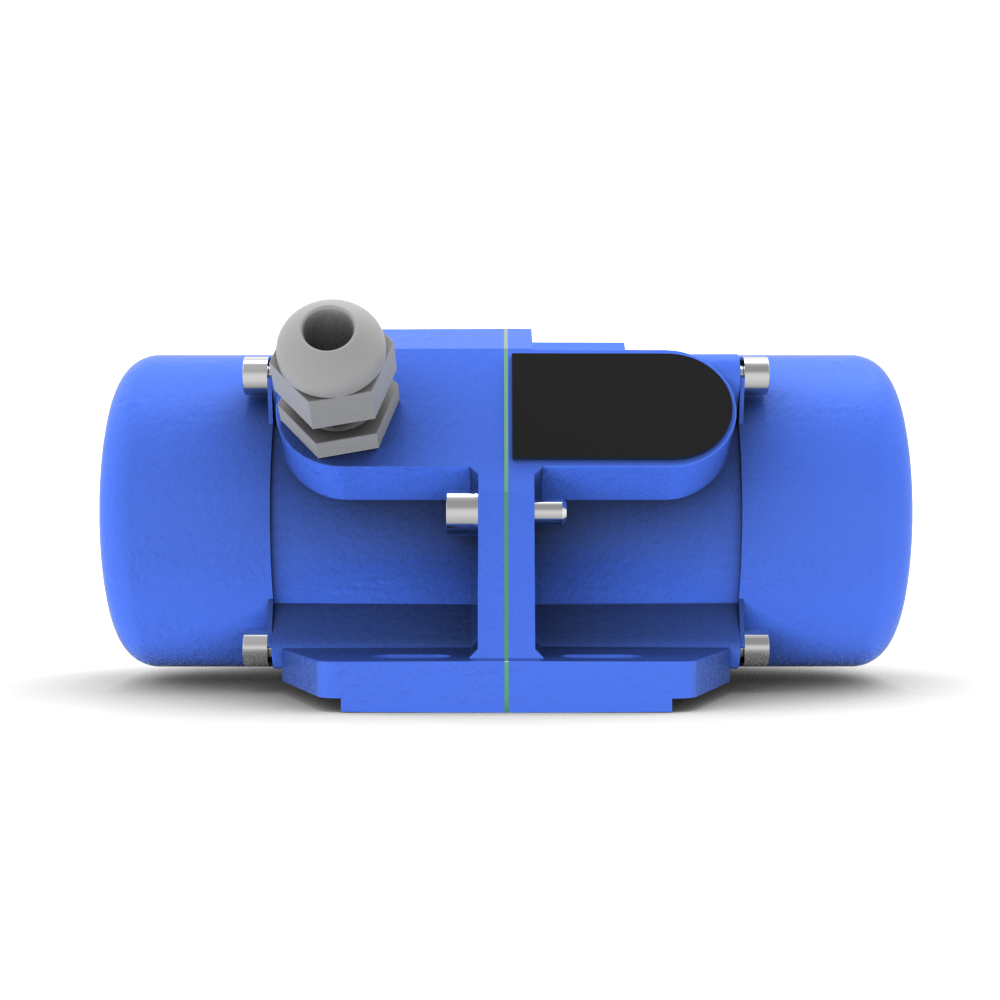

Aluminium trilmotor KBM-2.2-2M 230V-1f 3000rpm Mdyn kgcm Fcen 2.2kN Pnom 0.025kW
| Product code | KBM1FAA00022 |
|---|---|
| Manufacturer code | KBM-2.2-2M |
| Power supply motor | 230V-1phase-50Hz |
| Centrifugal force | 0.22 kN |
| Rated power | 0.025 kW |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | Koolen Industry |
|---|---|
| material housing | Aluminum |
| number of poles | 2 |
| rated power | 0.025 kW |
| power supply motor | 230V-1phase-50Hz |
| iP protection class | 66 |
| rated current | 0.15 A |
| static torque | ? kgcm |
| centrifugal force | 0.22 kN |
| pTC temperature controller | No |
| size gland | Cable 1m |
| number of cable glands | 1 |
| weight | 1.6 kg |
| color | Blue |
| depth | 61 mm |
| height | 67 mm |
| length | ? mm |
| bolt size | M6 |
| number of bolts | 4 |

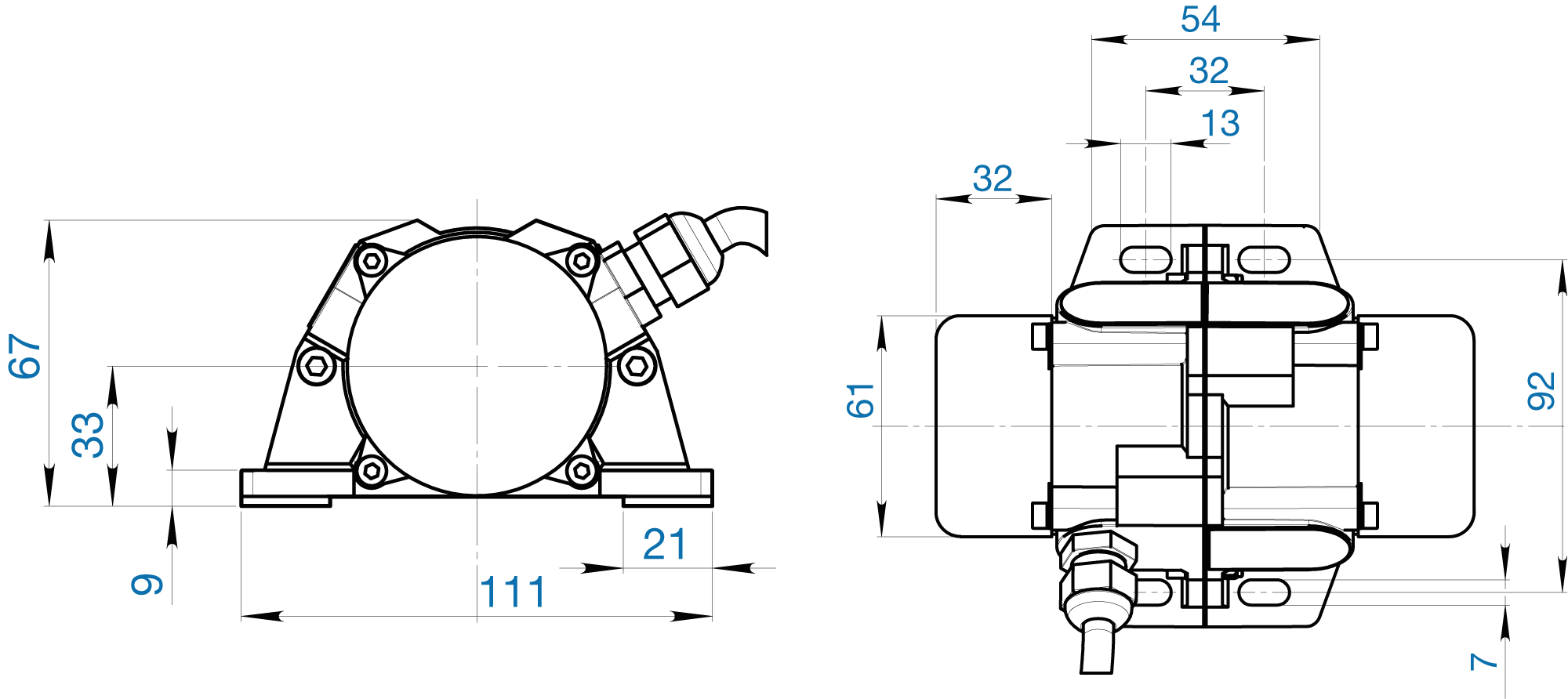

Drawing
The vibration motors of Koolen Industry is for more than 40 years an established name in the vibration technology market. De KBM1F-series is a single phase vibration motor. The vibration motors are applied to thicken, transporter and loading of bulk materials. De manufacturing and selection of vibration motors requires dedicated knowledge. Our product specialists are at your service to calculate and select the proper vibration for you.
Rated power
- 0.1 – 0.44 kW
Number of poles
- 2
Dynamic torque
- 1.3 – 13 kgcm
Centrifugal force
- 0.65 – 6.55 kN
Power supply
- 1-fase – 230V AC
- Special voltages on request
Housing
- Aluminum
Cover
- Powder coated sheet metal
- Optionally stainless steel cover
