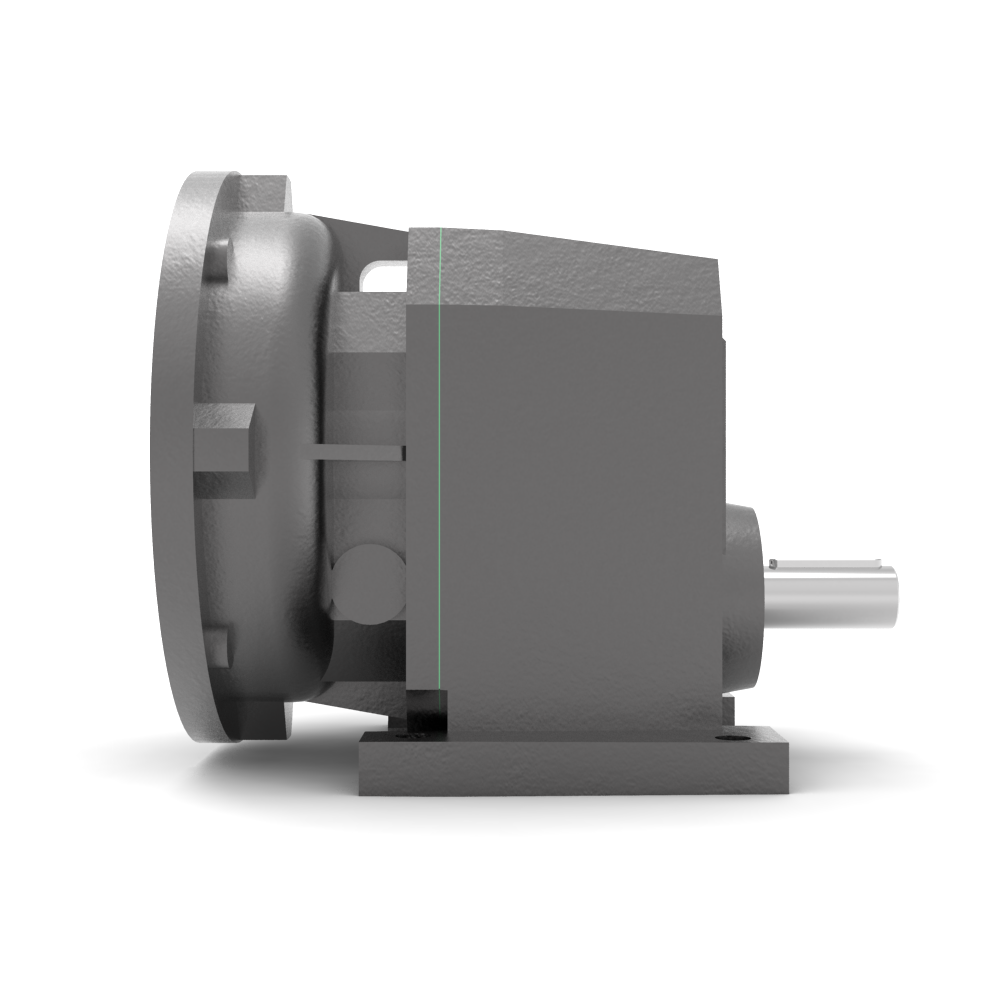

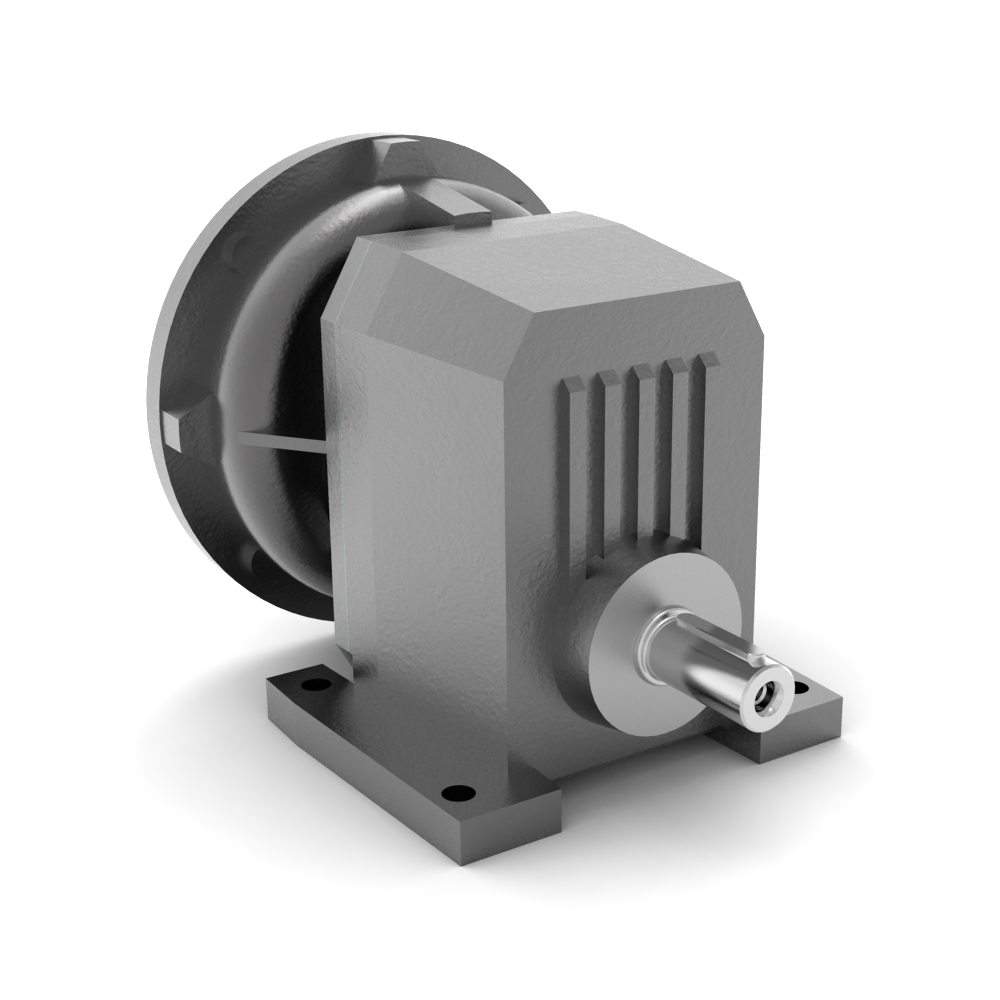

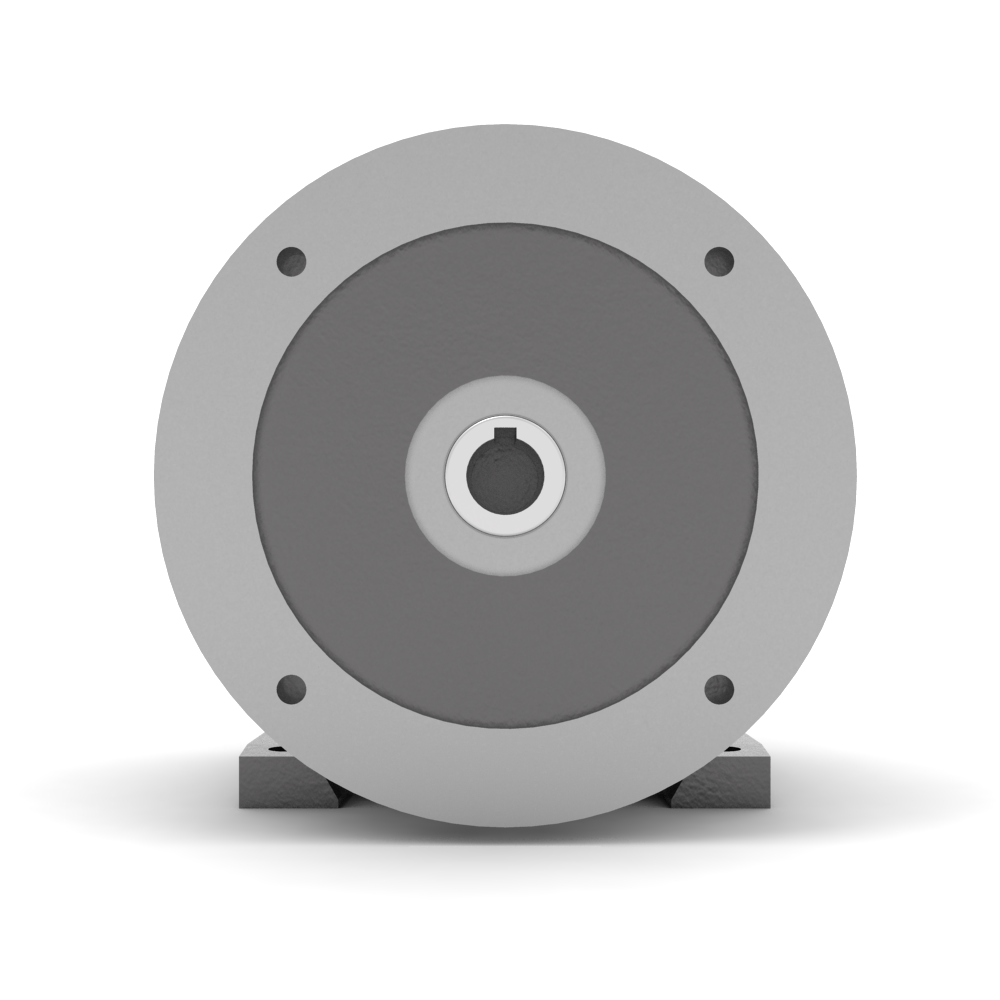

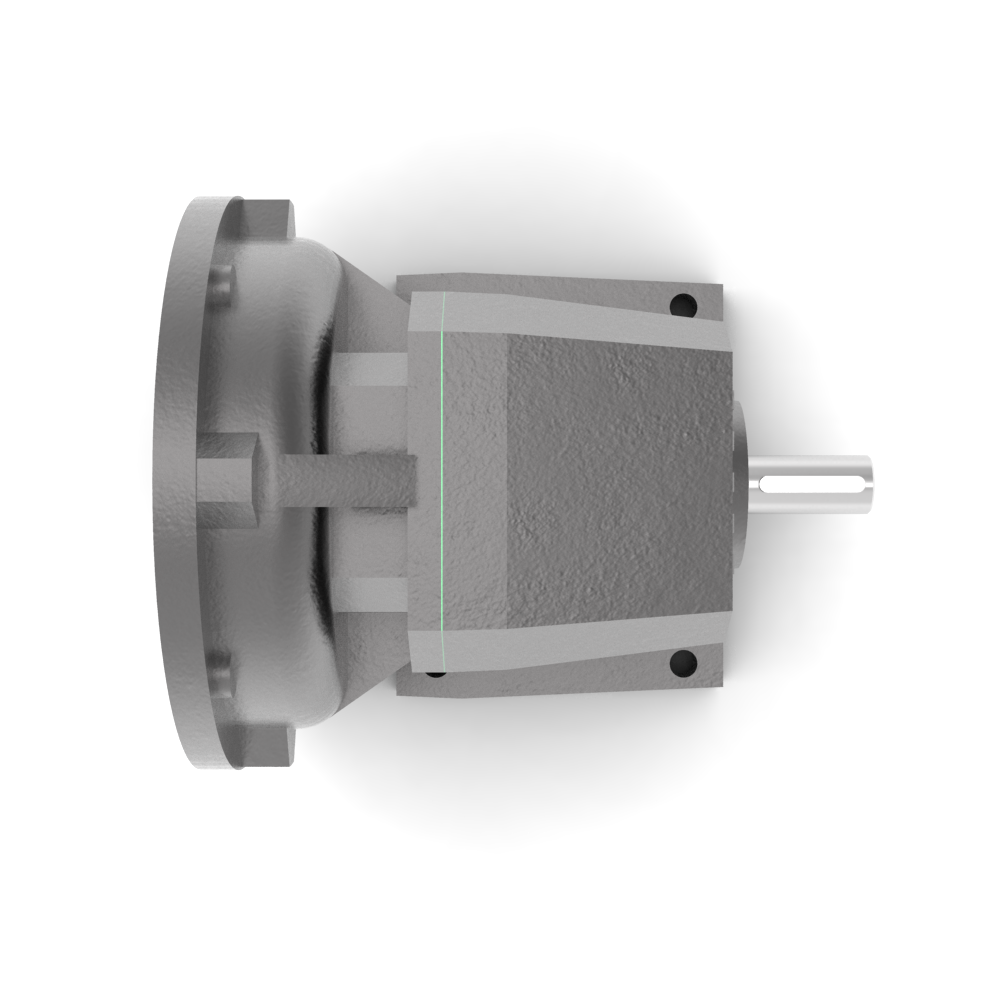

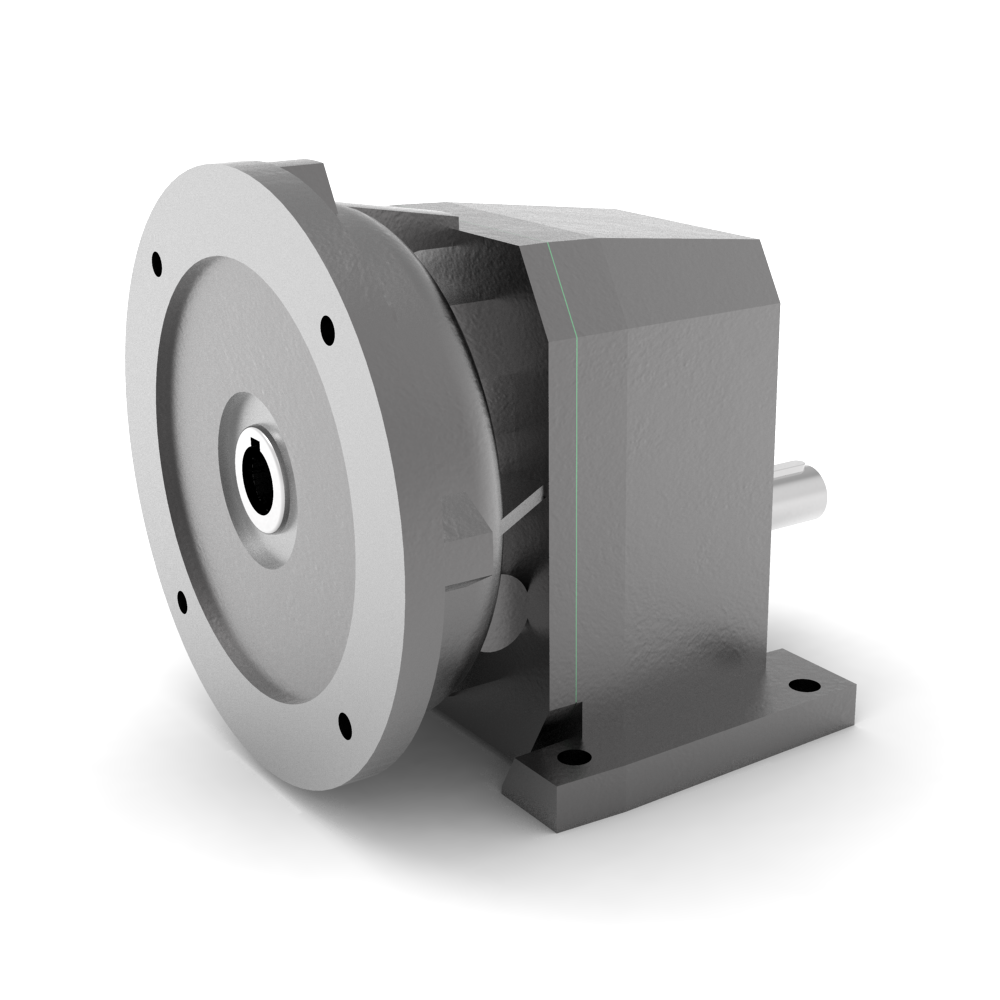

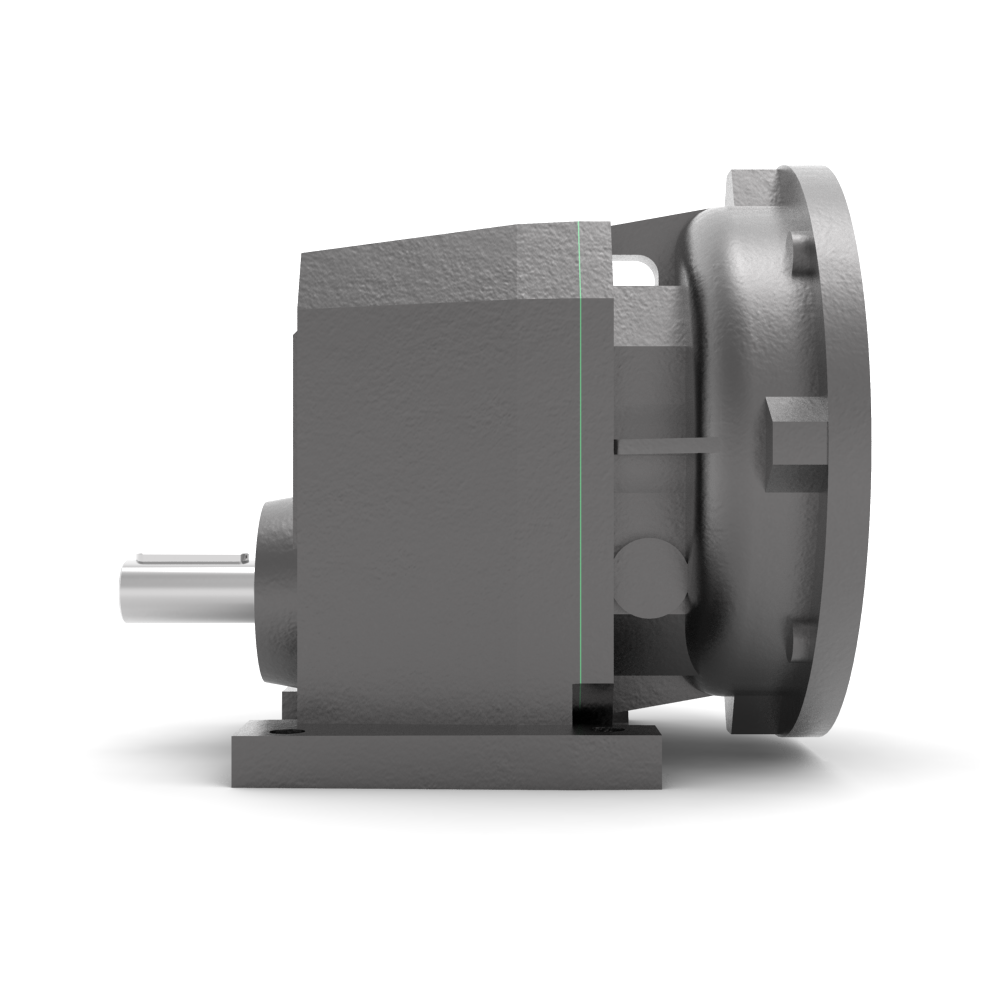

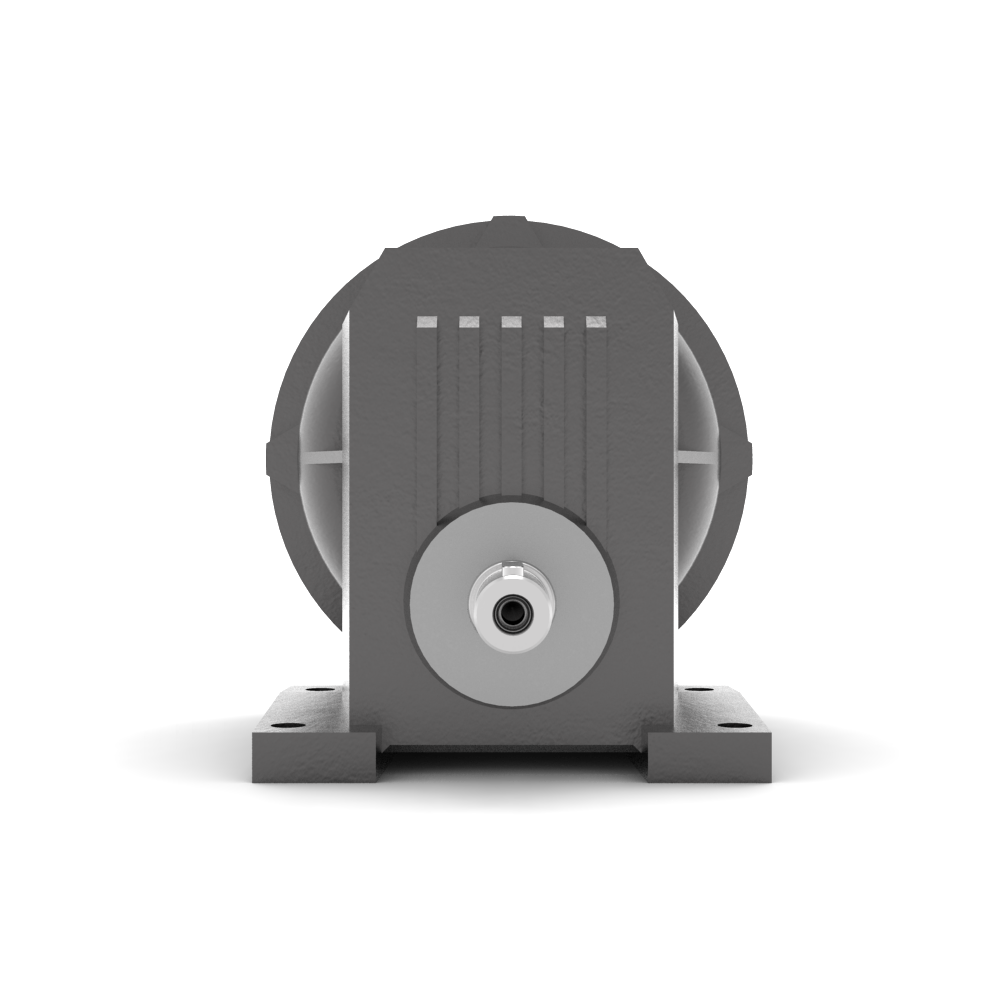

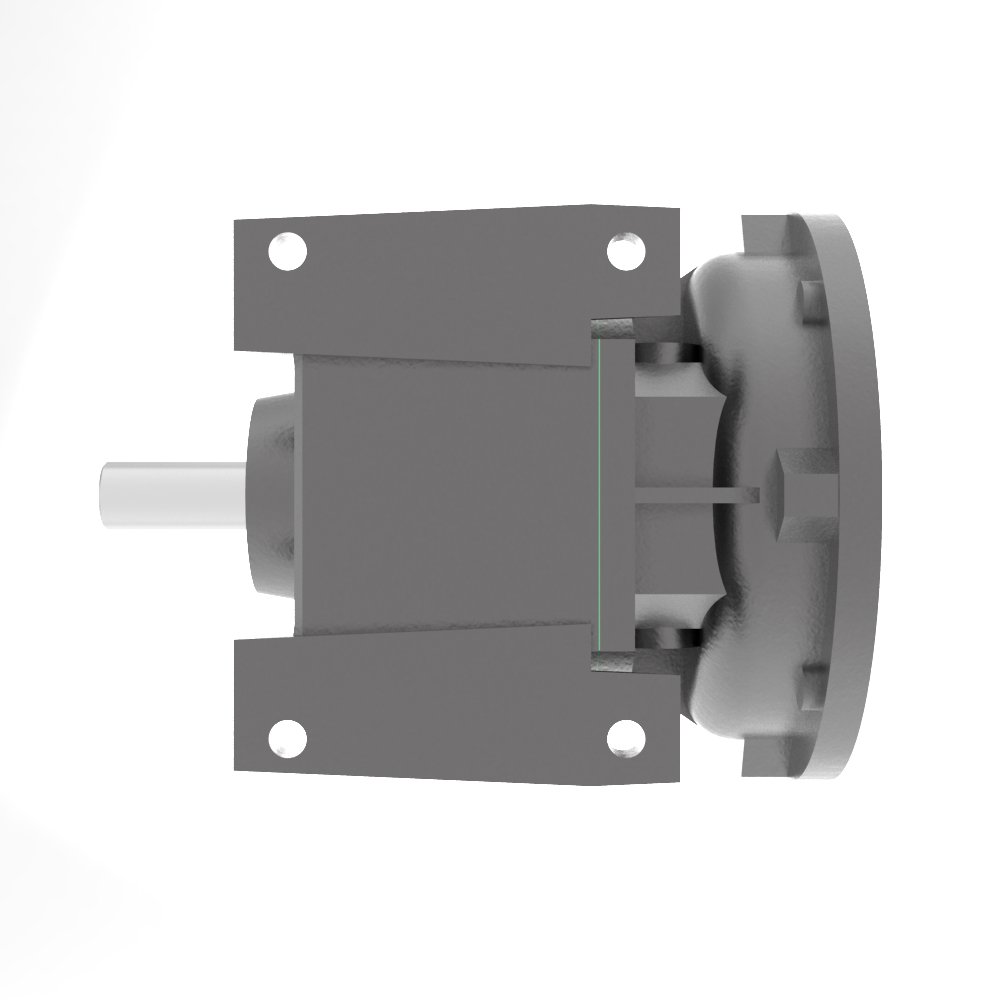

Eéntraps tandwielkast S0101 voet P i=2,5 motorflens P71/B5 bouwvorm B3
| Product code | S0101002503BP |
|---|---|
| Manufacturer code | S0101P 2,5 P71 B3 |
| Serie code reductor | S - Single stage gearbox |
| Type of gearbox input | P - IEC flange |
| Gearbox version | P - Foot |
| Input power | 0.37 kW |
| Output torque gearbox | 6 Nm |
| Output speed geadbox | 560 min-1 |
| Output shaft diameter | 14 mm |
| Type code gearbox | S0101 |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | Bonfiglioli Riduttori |
|---|---|
| serie code reductor | S - Single stage gearbox |
| iEC flange type | B5 |
| iEC flange size | 71 |
| type code gearbox | S0101 |
| gearbox version | P - Foot |
| type of gearbox input | P - IEC flange |
| mounting position gearbox | B3 |
| output shaft diameter | 14 mm |
| input power | 0.37 kW |
| thermal power at 1400rpm | 5.5 kW |
| output torque gearbox | 6 Nm |
| safty factor | 1.6 |
| input speed gearbox | 560 min-1 |
| ratio | 2.5 |
| output speed geadbox | 560 min-1 |
| moment of inertia gearbox | 0.00016 kgm² |
| dynamic efficiency | 98 % |
| weight gearbox | 5 kg |
| quantity of oil | 0.45 L |
Drawing
The S-series is lean, powerful and especially designed for driving pumps. For this reason the S-series gearbox is often used in cooling and drying towers, but also in other applications where pumps are needed. This single stage helical gearbox can be mounted on its foot or flange, and the output shaft comply with UNEL standardization.
The single stage gear units of the S-series are available three diffirent input types:
- HS version with solid input shaft
- P version with IEC standardized motor flange
- M version with integrated three-phase motor (optionally with brake)
The P version has the following main features:
Torque
- 21 – 200 Nm
Rated power (at n1 = 1400 rpm)
- 0.12 – 11.6 kW/li>
Ratios
- 1.4 – 13.1
Output versions
- Foot mounted
- Flange mounted
Three-phase motors
- IEC three-phase motors single speed
- IEC three-phase motors dual speed
- IEC brake motors
Motor options
- Temperature sensors (thermistor or clixon)
- Separate forced cooling
- Built-in encoder
