Wormwielkast VF150 voet V i=40 ingaande as HS positie B3
| Product code | VF150040HSVV |
|---|---|
| Manufacturer code | VF150 V 40 HS B3 |
| Serie code reductor | VF - Worm gearbox |
| Type of gearbox input | HS - Solid input shaft |
| Gearbox version | V - Foot vertical |
| Ratio | 40 |
| Input power | 7.4 kW |
| Output torque gearbox | 1540 Nm |
| Output speed geadbox | 35 min-1 |
| Output shaft diameter | 50 mm |
| Type code gearbox | VF150 |
To download the product sheet you need to be logged in. Click here to login.
| manufacturer | Bonfiglioli Riduttori |
|---|---|
| serie code reductor | VF - Worm gearbox |
| type code gearbox | VF150 |
| gearbox version | V - Foot vertical |
| type of gearbox input | HS - Solid input shaft |
| mounting position gearbox | B3 |
| output shaft diameter | 50 mm |
| input power | 7.4 kW |
| output torque gearbox | 1540 Nm |
| safty factor | 1 |
| input speed gearbox | 1400 min-1 |
| ratio | 40 |
| output speed geadbox | 35 min-1 |
| angular backlash | 0.00349 rad |
| angular backlash tolerance | ±0.00087 rad |
| moment of inertia gearbox | 0.0016 kgm² |
| dynamic efficiency | 77 % |
| static efficiency | 44 % |
| dynamic reversible | Yes |
| static reversible | Uncertain |
| permissible radial force input shaft | 830 N |
| permissible radial force output shaft | 14700 N |
| weight gearbox | 60 kg |

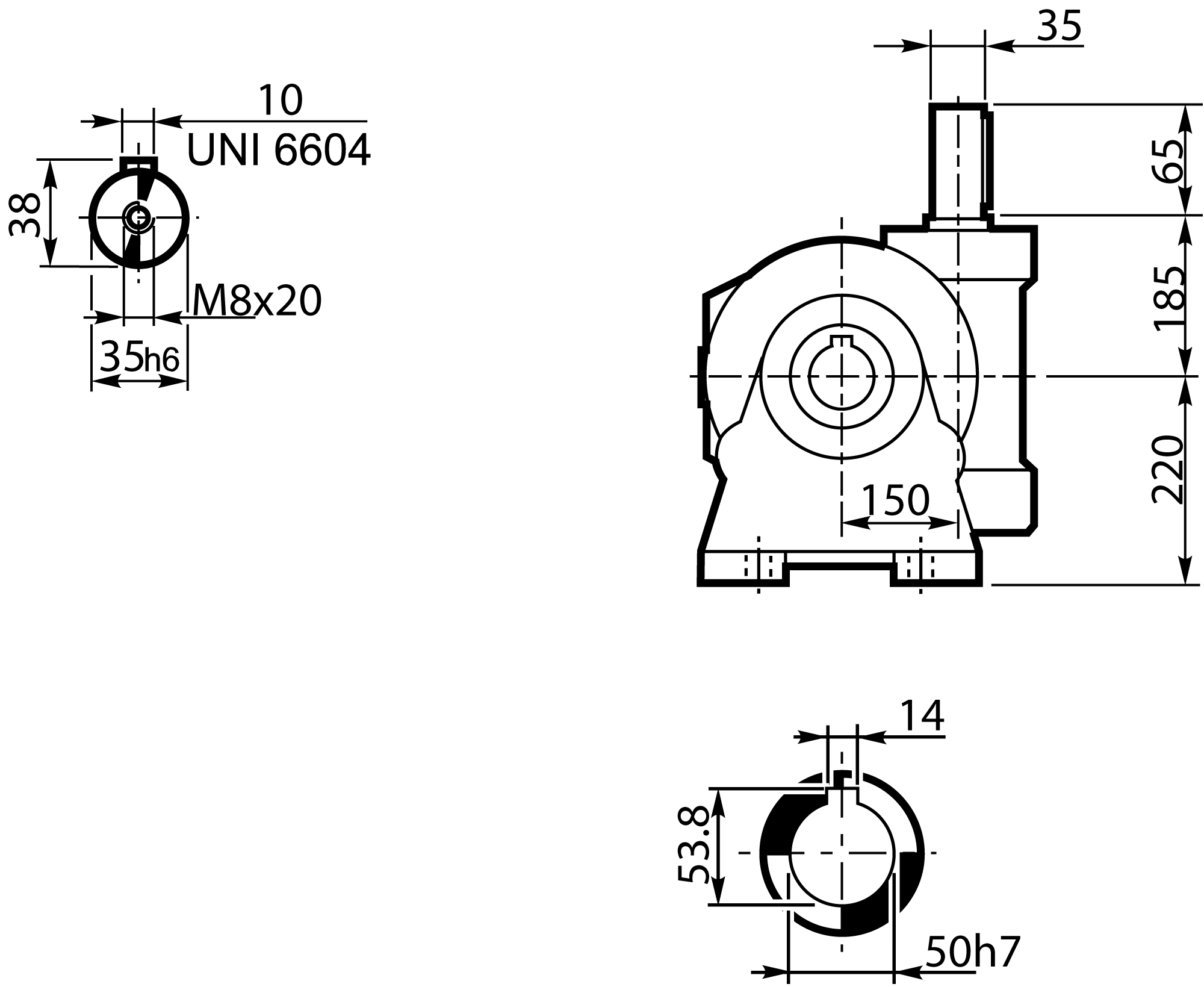

Drawing
Bonfiglioli worm gear motor is a milestone for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.
Torque
- 13 – 7,100 Nm
Rated power (at n1 = 1400 rpm)
- 0.04 – 75 kW
Ratios
- Single pitch: 7 – 100
- Combined boxes: 49 - 10,000
Output versions
- Hollow shaft with key
- Optionally solid input shaft
- Various types of side flange
Input versions
- HS solid input shaft with key
Options
- Torque arm
- ATEX certification
- Integrated torque limiter
- Extra Protection (EP) version for food industry
